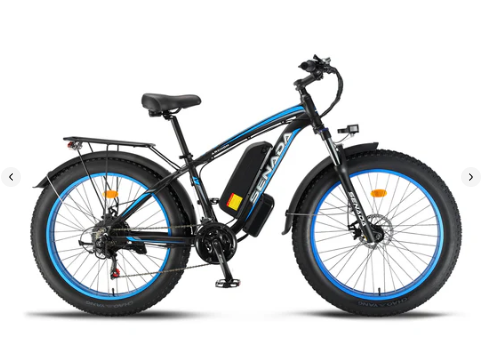

SENADA ARCHON
1000W Removable 48V/17.5AH Battery Fat Tire Electric Bicycle 21-Speed Shifting UL and GCC Certified
Electric Mountain Bike ARCHON
Motor
Battery
Max Range
Charging Time
Max Load
Class
With a powerful 1000 W brushless motor, 25A controller, maximum peak power up to 1100 W. With pedal-assisted application, the top speed can reach 30mph, and 82Nm of torque is enough for everyday riding on all terrains, easily overcoming complex terrain.
The 26 “* 4.0” Chaoyang mountain fat tires is suitable for all terrains and has excellent wear, grip and skid resistance. provide improved grip and traction on themost troublesome terrain.
Equipped with 48V/17.5 Ah removable lithium-ion battery, The high-capacity endurance is enough for long-distance exploration and round-trip travel.
You can also bring the battery to your home or office to recharge.
Charging time: about 7-9 hours. Full-charge range: 33-65 miles, depending on whether you use more pedal-assisted power or more throttle power.
The electric bicycle offers three riding modes: pure electric mode, pedal assist mode and classic bicycle mode. Max speed: 30 mph; range: 33 to 65 miles; throttle mode 33 miles; pas mode 65miles.
The electric mountain bike is equipped with professional 21 speed shift gear, whether uphill, downhill or slow, constant speed, acceleration, can meet all the above requirements.
| Motor | 1000 watt |
|---|---|
| Battery | 48 volt 17.5 amp-hour |
| Max Load | 330 lbs (150 kg) |
| Range | 65 miles (105 km) |
| Recommended Rider Height | 5’7″ ~ 6’6″ (170cm ~ 198cm) Calculated from the average heights of the test riders. |
| Included | Battery, charger, pedals, assembly toolset, assembly guide, additional hardware, zip ties |
| Warranty | 2 Years |
| Motor | 1000 watt (1100 watt peak), 82 N.m, toothed, brushless hub motor |
|---|---|
| Battery | 48 volt 17.5 amp-hour li-ion battery. Waterproof IP65 (included) |
| Range | 33~65 miles (53~105 km) |
| Charger | Input AC100V-240V 2A, Output DC54.6V 2.0Ah Smart Charger (included) |
| Battery Charge Time | 7~9 hours |
| Battery Lifetime | 500-600 cycles |
| Frame | 6061 Aluminum full suspension frame |
| Controller | 48V 25A, IP67 |
|---|---|
| Display | M5 LCD display, Smart Computer |
| Headlight | 450 lm |
| Taillight | With brake light function |
| Tires | Chaoyang 26″ x 4″ fat tires |
|---|---|
| Throttle | Half twist throttle |
| Seat post | 300mm × 30.4mm adjustable height |
| Crank | Prowheel 52T |
| Pedal | Aluminum alloy pedal with reflectors |
| Chain | 118 links |
| Freewheel | Shimano 3×7 speed gear shifter system |
| Kickstand | Heavy duty aluminum |
| Brake lever | Anti-slip grip levers with motor cutoff switch |
|---|---|
| Brake | Speed series 160mm brakes |
| Transmission | Shimano gear shift system 21-speed |
| Front fork | Suspension fork with lockout function |
| Bike Weight | 68 lbs (31 kg) with battery |
|---|---|
| Bike Dimension | Height 35.4”-39.4“ (90-100 cm) / Length 74.8” (190 cm) |
| Packing Size and Weight | 58x11x31in 84lbs (147x28x79cm 38Kg) |
| Total Payload Capacity | 330 lbs (150 kg) |
| Frame | 2 years |
|---|---|
| Parts | 2 years |
| Battery | 1 year |
| Terms & Conditions | This warranty only applies to the original owner of a Senada bike and is limited to the replacement of defective parts. |
